Description
For Numato Products Price details/ quotation please mail your requirements on dolphinlabs17@gmail.com

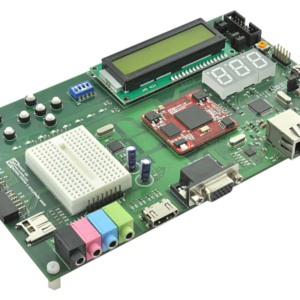

Waxwing is an easy-to-use FPGA module featuring AMD Spartan-6 FPGA. This module features the AMD XC6SLX series FPGA in the CSG324 package. This module takes care of FPGA, Configuration, DDR, and power so you can invest more time and effort into your application-specific aspects of the hardware development. The module is pre-populated with 512Mb DDR memory and 128Mb SPI flash for FPGA configuration. A large number of IOs and important signals including JTAG are available on the high pin to count low profile connectors (DF40C-90DP) on the backside of the module. Numato has made available carrier boards and development boards that can be used for evaluation and development with this FPGA module. At only 40mm x 36.5mm in size, this module packs a lot of power in such a small footprint. Customization services are available for OEM customers. Please contact us for more details.
Features
- FPGA: AMD Spartan-6 XC6S LX9, LX16, LX25 or LX45 in CSG324 package
- DDR: 166MHz 512Mb LPDDR
- Flash memory: 128 Mb SPI flash memory (N25Q128A13ESE40E)
- Two 90-pin 0.4mm Hirose board-to-board connectors (DF40C-90DP)
- 100MHz CMOS oscillator
- All differential pairs are length matched on the module
- Maximum 134 IOs for user-defined purposes XC6SLX9 – 118 IOs XC6SLX16 – 134 IOs XC6SLX25 – 134 IOs XC6SLX45 – 134 IOs
- Onboard voltage regulators for single-power rail operation
- Only 40mm x 36.5mm (1.58” x 1.4”) in size
- JTAG and SPI signals available on the connector for configuration
Applications
- Product Prototype Development
- Signal Processing
- Development and testing of custom-embedded processors
- Educational tool for schools and universities
- Volume production
- Communication device developme
